Level Gages
Liquid Level Gages & Valves
For direct visual indication of process level, a broad range of flat-glass transparent or reflex gages are available to meet most temperature and pressure conditions. Tubular styles are also available, along with a complete line of offset pattern valves.

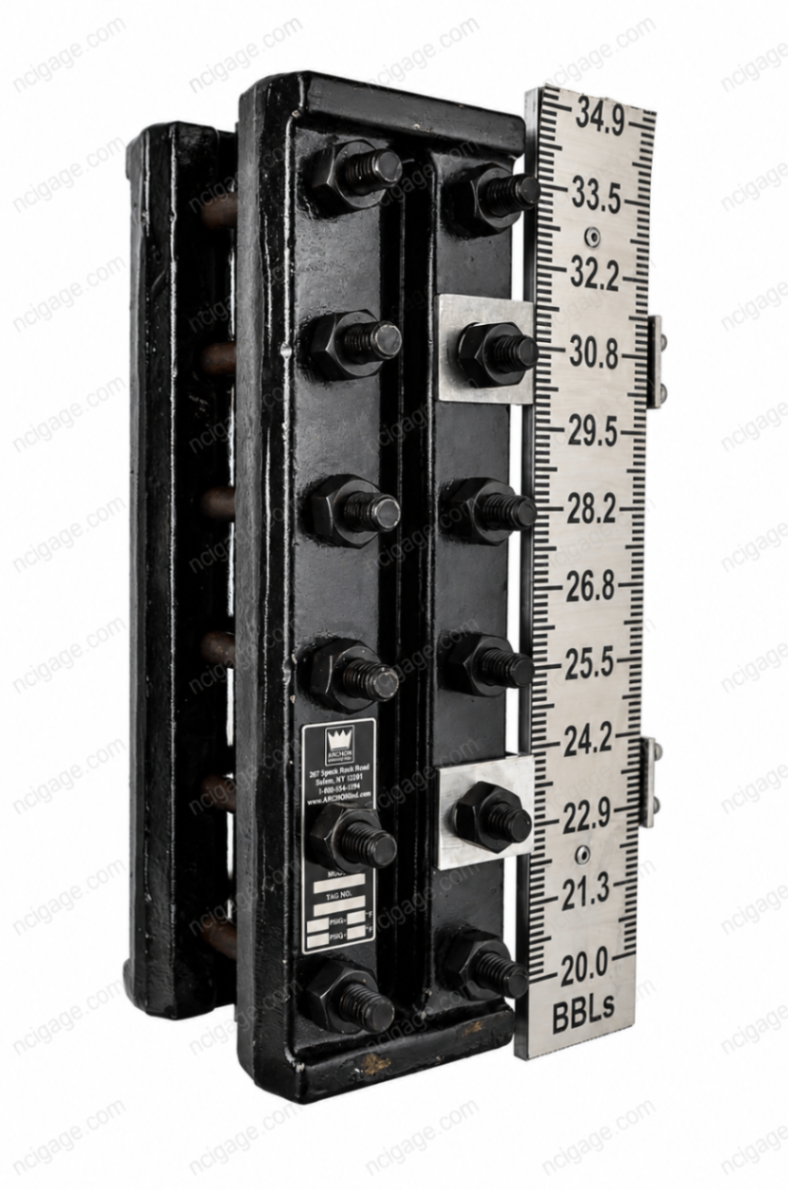

Low Pressure Level Gages
Model RL and TL Armored Level Gages
Reflex and Transparent Flat Glass Gages – Pressures Up To 2400 PSI @ 100°F / 1780 PSI @ 600°F. Available in single and multiple section types.
View Details

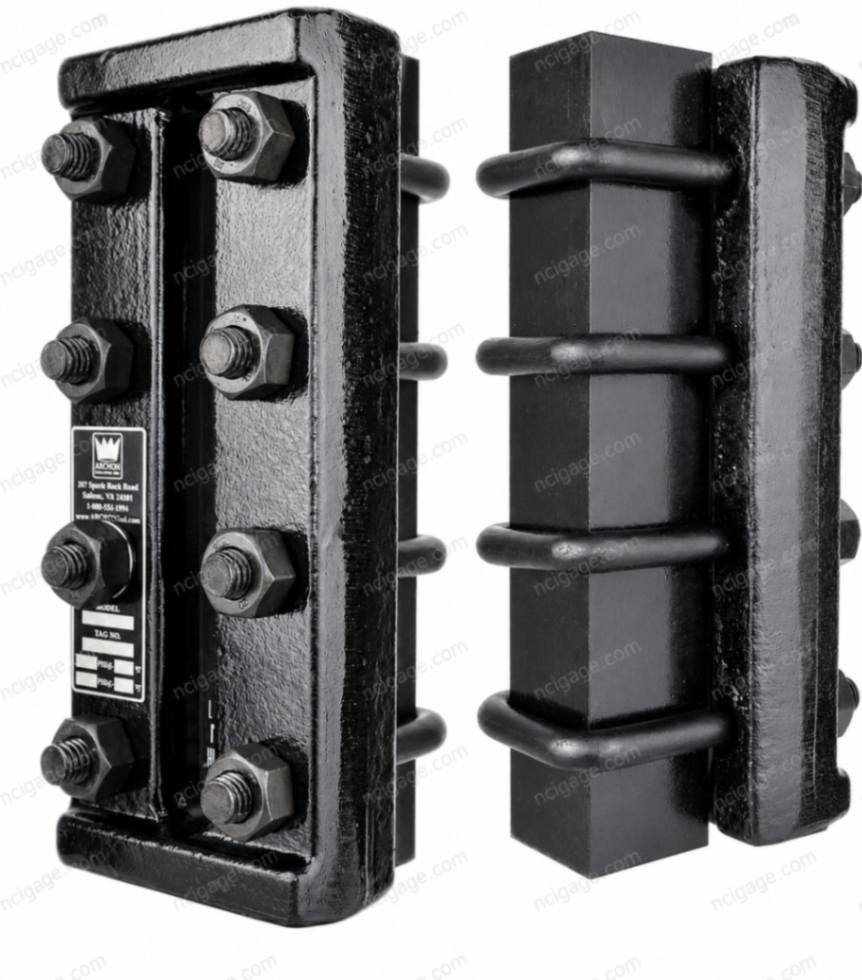

Medium Pressure Level Gages
Model RM and TM Armored Level Gages
Reflex and Transparent Flat Glass Gages – Pressures Up To 3000 PSI @ 100°F / 2000 PSI @ 600°F. Available in both single and multiple section types.
View Details

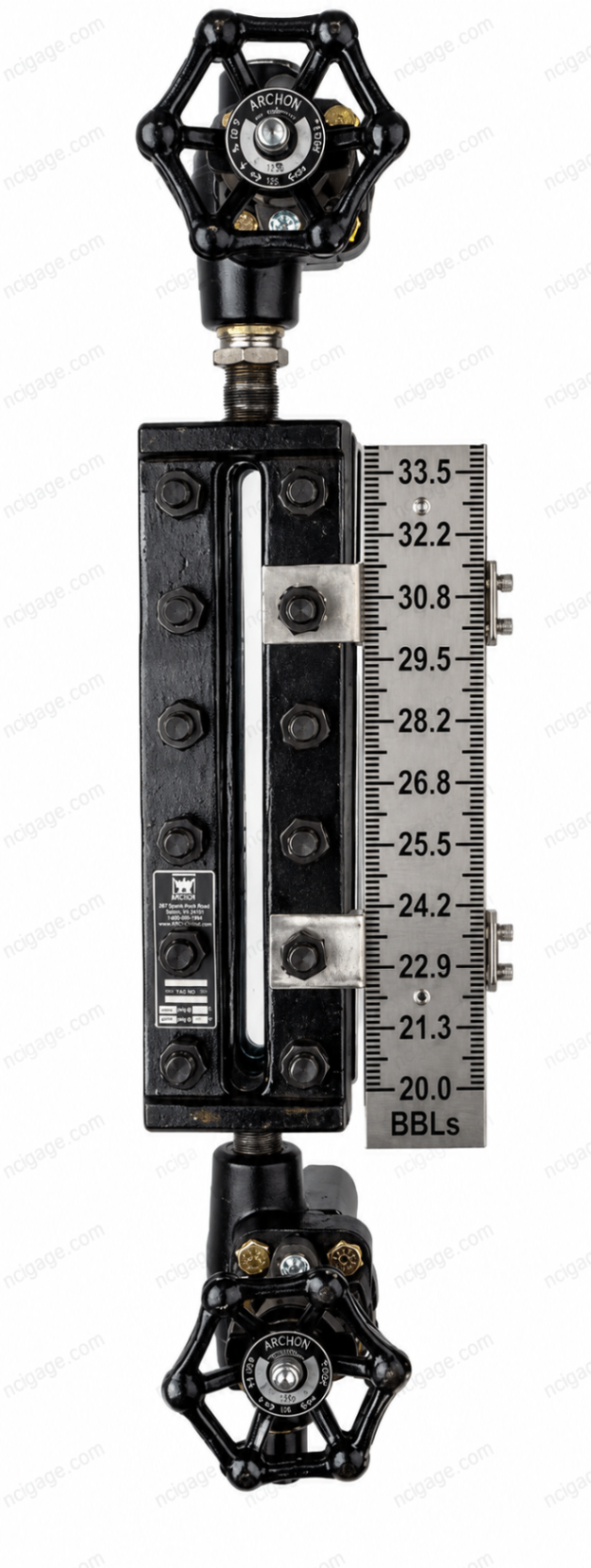

High Pressure Level Gages
Model RH and TH Armored Level Gages
Reflex and Transparent Flat Glass Gages – Pressures Up To 4000 PSI @ 100°F / 2775 PSI @ 600°F. Available in both single and multiple section types.
View DetailsLarge Chamber Level Gages
Models RLC, TLC, RMC, TMC, RHC, THC
Designed for boiling, flashing, and surging liquids. Extra-heavy wall chamber construction provides enhanced level stability in turbulent service.
View DetailsWeld Pad Level Gages
Models RLG (Reflex) and TLG (Transparent)
Designed to be welded directly to tanks and vessels, eliminating external piping and reducing leak points. Custom vessel contour machining available.
View DetailsHeated & Cooled Level Gages
Internal Tube (Model IHT) and External Tube (Model H)
For viscous products or fluids that solidify at lower temperatures. Internal and external tube heating/cooling designs available on all pressure series.
View DetailsFrost Proof Level Gages
Cryogenic Service to -325°F
Special visibility extensions prevent frost buildup from obscuring the viewing area. All stainless steel construction below -150°F. For LNG, industrial gas, and cryogenic storage.
View DetailsHazardous Area Gauge Illuminators
XPL-20 — UL Approved, Class I Groups B, C & D
Distributes bright, uniform light across the entire viewing area of transparent level gages. For indoor, nighttime, and low-light process environments.
View DetailsGauge Measuring Scales
Zinc Alloy, Stainless Steel, Aluminum, Laminated Plastic
Precision level measurement scales graduated in inches, centimeters, or millimeters. Custom scales available for process control and inventory monitoring.
View Details

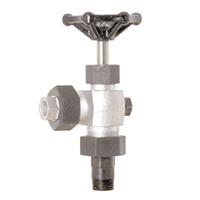

Bonnet Style Valves (Series 700)
Series 700 Isolation Valves
Drop Forged Steel Bodies, Stainless Steel Trim, Screwed Renewable Seat and Safety Ball Checks. 4000 lbs. at 100°F or 1700 lbs at 600°F.
View Details

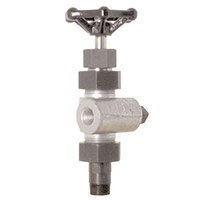

Bonnet Style Valves (Series 900)
Series 900 Isolation Valves
Drop Forged Steel Bodies, Stainless Steel Trim and Safety Ball Checks. Renewable seats and union bonnet. 4000 lbs. at 100°F or 1700 lbs at 600°F.
View Details

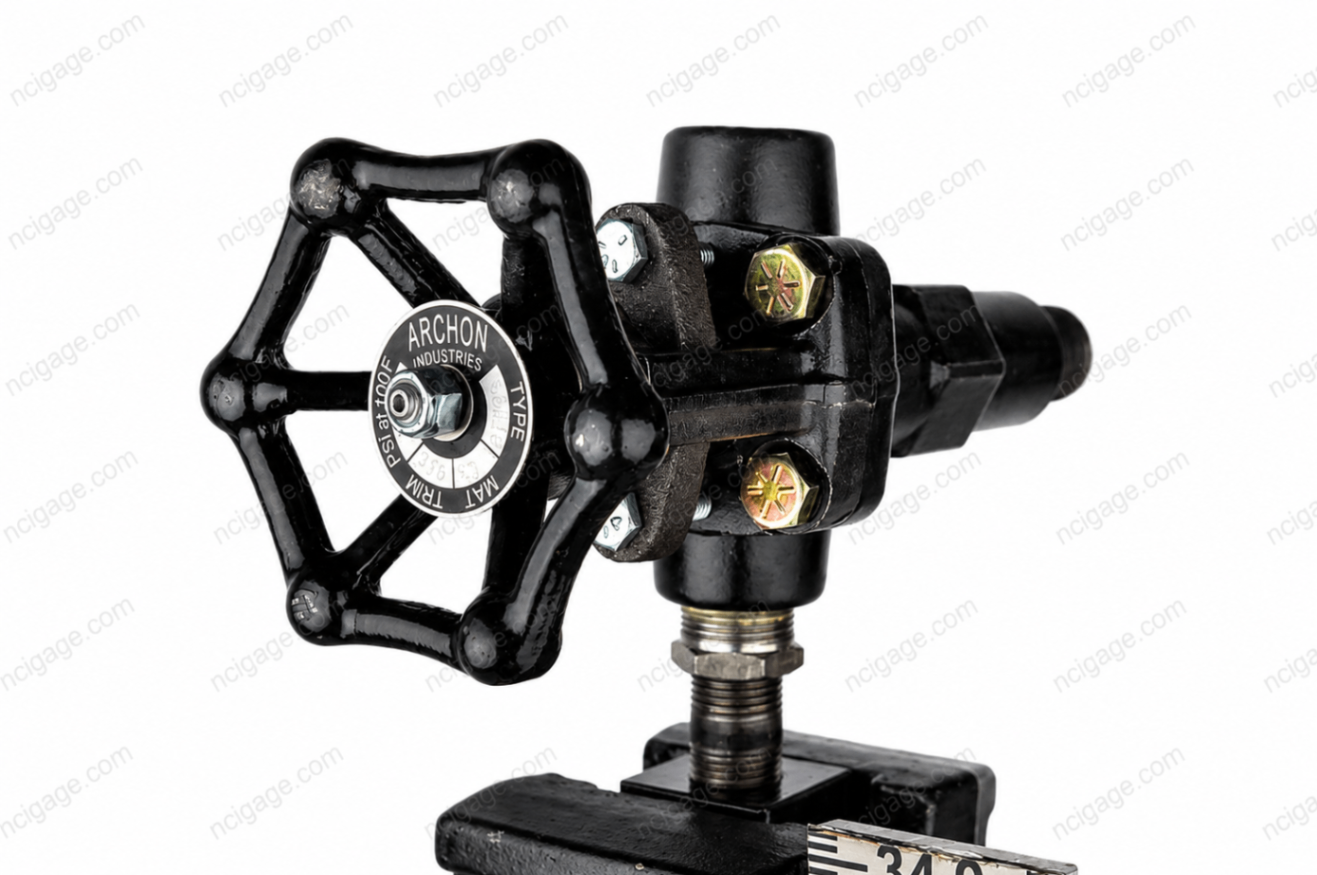

OS&Y Style Valves (BB-100)
Series BB-100 OS&Y Gauge Valves
Outside Screw and Yoke style gauge valves for level gage isolation applications.
View Details

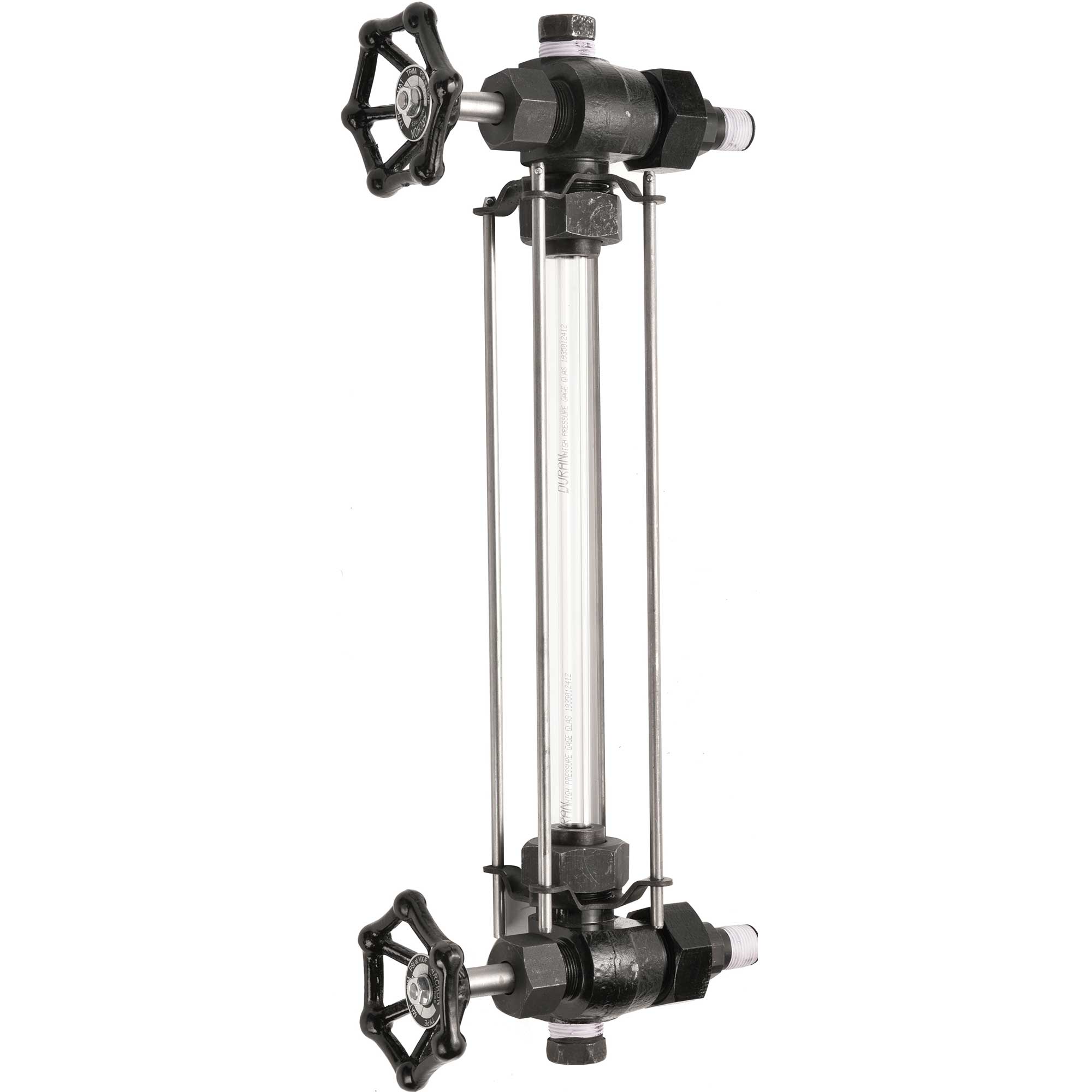

Tubular Valves Model TV55
Model TV55 Tubular Valves
Tubular style valves for use with tubular level gages.
View Details
