Weld Pad Level Gages
Direct Vessel Mounting — Models RLG (Reflex) and TLG (Transparent)

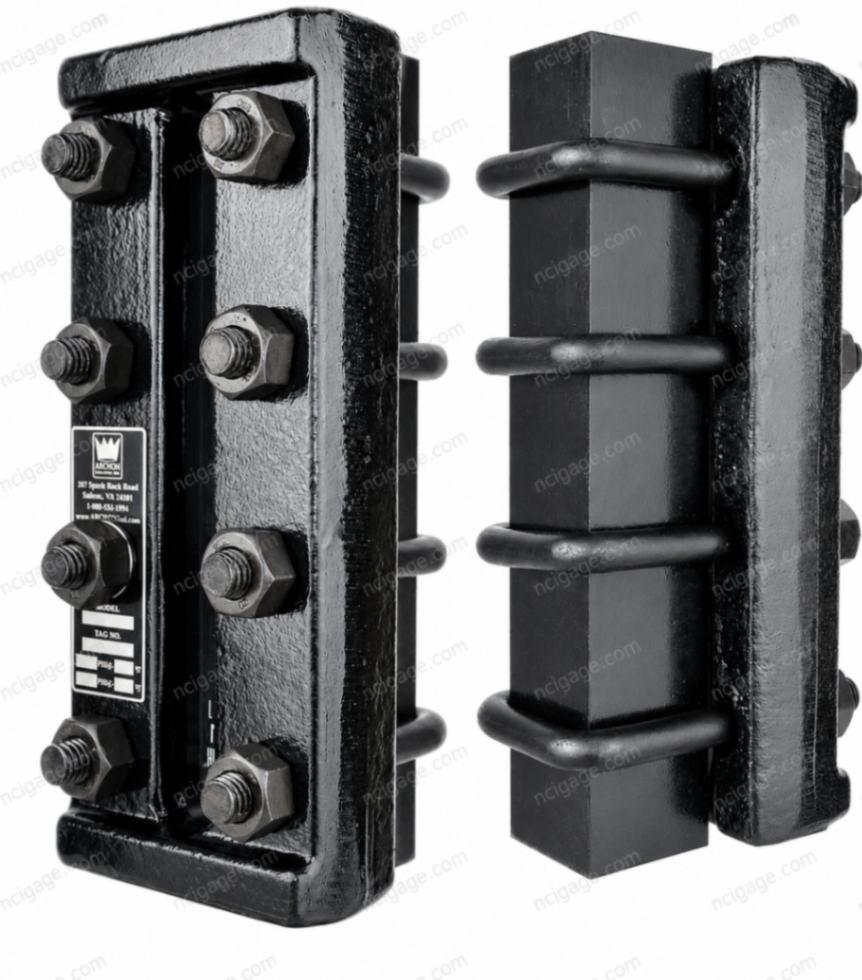

Northeast Controls Weld Pad Level Gages are designed to be welded directly to tanks and vessels, eliminating the need for external piping and reducing installation complexity. By mounting directly to the vessel wall, weld pad gages minimize potential leak points and provide a compact, low-profile installation.
Available in reflex style (Model RLG) for high-contrast liquid/vapor indication, and transparent style (Model TLG) for full visibility of liquid level, color, and interface layers. Custom vessel contour machining is available to match the curvature of cylindrical vessels.
Weld pad gages are an ideal solution for applications where nozzle space is limited, where a streamlined installation is preferred, or where minimizing external connections is a priority for safety or maintenance reasons.
Benefits
- Reduced leak points vs. flanged connections
- Compact, low-profile installation
- Improved visibility — no external piping obstruction
- Custom vessel contour machining available
- Carbon steel, stainless steel, and alloy materials
- Suitable for ASME code vessel applications
Available Configurations
- Model RLG — Reflex Weld Pad Gage
- Model TLG — Transparent Weld Pad Gage
- Obround style (Model TLG-OB) for larger viewing area
- Rectangular armored style (Model RLG) for added protection
- Single and multiple section designs
- Custom lengths and configurations available
Specifications
- Reflex Model:
- RLG
- Transparent Model:
- TLG
- Mounting Method:
- Weld-on direct to vessel or tank wall
- Body Material:
- Carbon Steel, 304SS, 316SS; Monel and other alloys available
- Window:
- Tempered Borosilicate Glass
- Vessel Contour:
- Custom contour machining available for cylindrical vessels
- ASME Service:
- Available for code vessel applications
- Options:

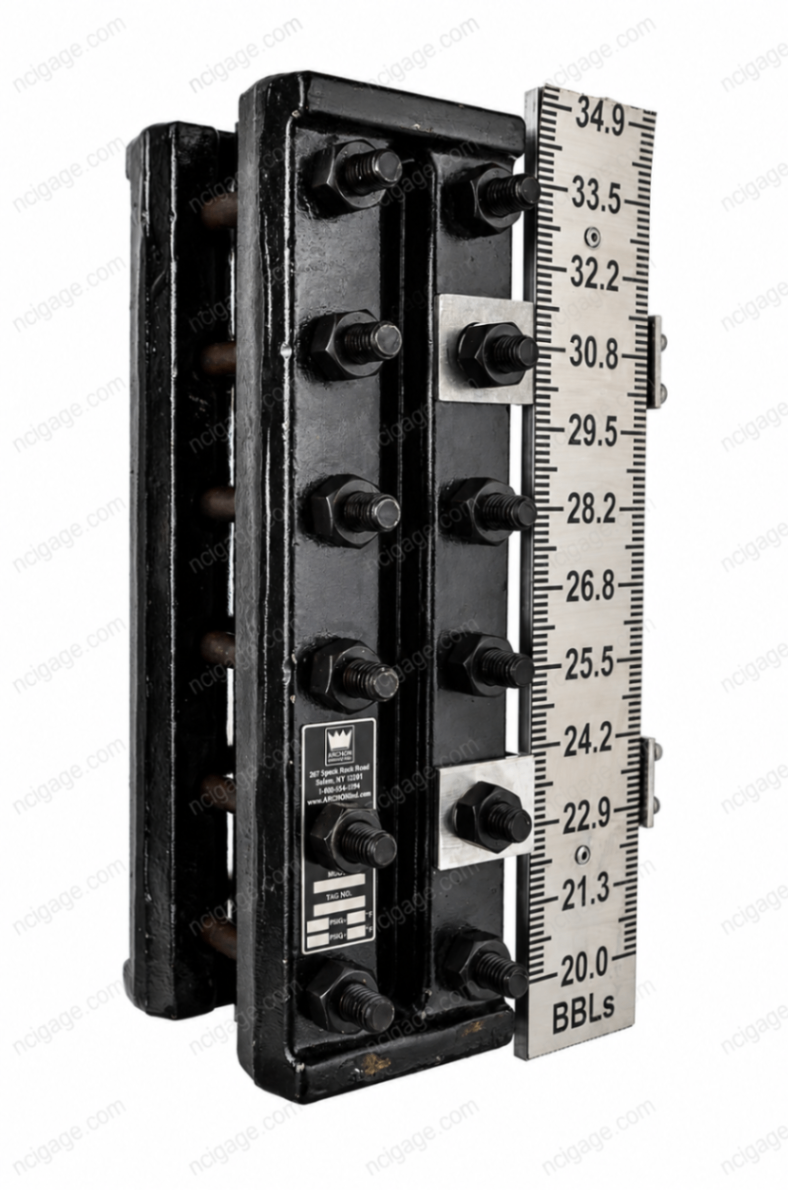

- Illuminators, Measuring Scales, Heated/Cooled configurations
- Contact:
- Call 1+201.419.6111 for pressure/temperature ratings and sizing
