Model TLG-OB Obround Sightglass
Weld-On Obround Sight Window — Maximum Viewing Area for Vessels, Tanks & Piping

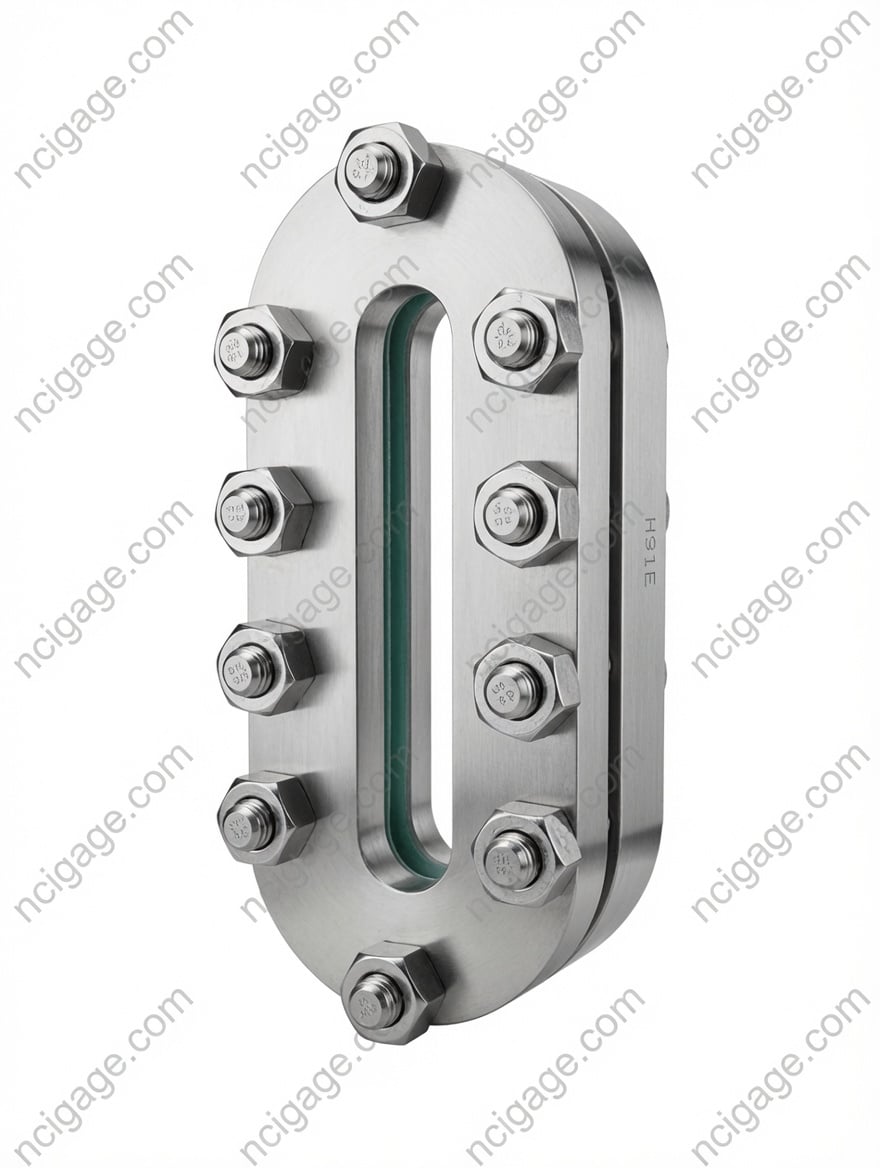

The Model TLG-OB is an obround sightglass designed to provide maximum viewing of vessel or tank contents. The obround (oval) shape delivers a significantly larger viewing area than circular sight windows of equivalent width, making it ideal for applications where broad visual inspection of process contents is required.
These units conform to ASME code requirements and are manufactured using ASME-acceptable materials. Model TLG-OB sightglasses are designed for welding onto ASME code and non-code pressure vessels, piping, or tank walls. They are suitable for use in both vacuum and pressure applications.
Available in various materials of construction. Custom designs are available for higher pressure ratings, special sizes, and cylindrical radiused weld pads.
Options & Accessories
- Lighting units for hazardous or non-hazardous locations
- Spray wash systems
- Internal radius for rubber lining
- Custom sizes and pressure ratings available
- Cylindrical radiused weld pads available
Key Features
- Maximum viewing area — obround shape
- ASME code conforming materials
- Vacuum and pressure service
- Weld-on direct to vessel or tank wall
- Multiple standard sizes available
- Custom designs available
Specifications
- Style:
- Obround Weld-On
- Shape:
- Obround (oval with rounded ends)
- Mounting:
- Weld-on direct to vessel, tank, or piping wall
- Code Compliance:
- Conforms to ASME Boiler & Pressure Vessel Code
- Service:
- Vacuum and pressure applications
- Standard Max Pressure:
- 150 psig (standard sizes); higher ratings available on custom designs
- Glass Thickness (T):
- 1.25"
- Materials:
- Various materials of construction available
- Options:
- Lighting, spray wash, internal radius for rubber lining
- Custom:
- Special sizes, higher pressure ratings, cylindrical radiused weld pads
Model TLG-OB — Standard Dimensions
| Model No. | A (in) | B (in) | C (in) | D (in) | T (in) | Max. Pressure |
|---|---|---|---|---|---|---|
| TLG-OB-1x6" | 3.62 | 1 | 6 | 8.62 | 1.25 | 150 psig |
| TLG-OB-2x12" | 5 | 2 | 12 | 15 | 1.25 | 150 psig |
| TLG-OB-2x18" | 5 | 2 | 18 | 21 | 1.25 | 150 psig |
| TLG-OB-3x12" | 6 | 3 | 12 | 16 | 1.25 | 150 psig |
| TLG-OB-3x18" | 6 | 3 | 18 | 22 | 1.25 | 150 psig |
| TLG-OB-4x12" | 7 | 4 | 12 | 17 | 1.25 | 150 psig |
| TLG-OB-4x18" | 7 | 4 | 18 | 23 | 1.25 | 150 psig |
| TLG-OB-4x24" | 7 | 4 | 24 | 29 | 1.25 | 150 psig |
