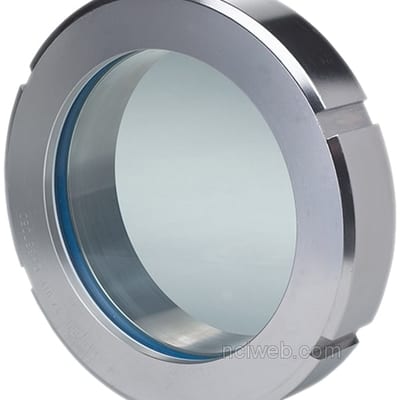

Model SS Dairy Sightglass
Screwed Sanitary Sightglass for Pharmaceutical, Cosmetics, Food & Dairy Industries
Model SS Screwed Sightglasses are used for visual control of processes inside vessels, storage tanks, mixers, reactors, and similar equipment. They are preferably used in the Pharmaceutical, Cosmetics, and Food Industries and General Processing.
Combined lighting and viewing is achieved with the Model HLM lighting unit. Special materials and special configurations are available upon request.
Specifications
- Style:
- Screwed Sanitary Sightglass
- Weld Ferrule:
- 304 or 316L Stainless Steel
- Grooved Collar Nut:
- 304 SS
- Glass Plate:
- Tempered Borosilicate
- Gasket:
- PTFE
- Gasket (Product Side):
- Silicone
- Max Pressure:
- 85 PSIG
- Vacuum Rating:
- Full Vacuum
- Max Temperature:
- 500°F
- Options:
- Non-Hazardous Lighting Units, Low Pressure Wiper, Special Materials, Special Configurations
- Industries:
- Pharmaceutical, Cosmetics, Food, Dairy, General Processing
