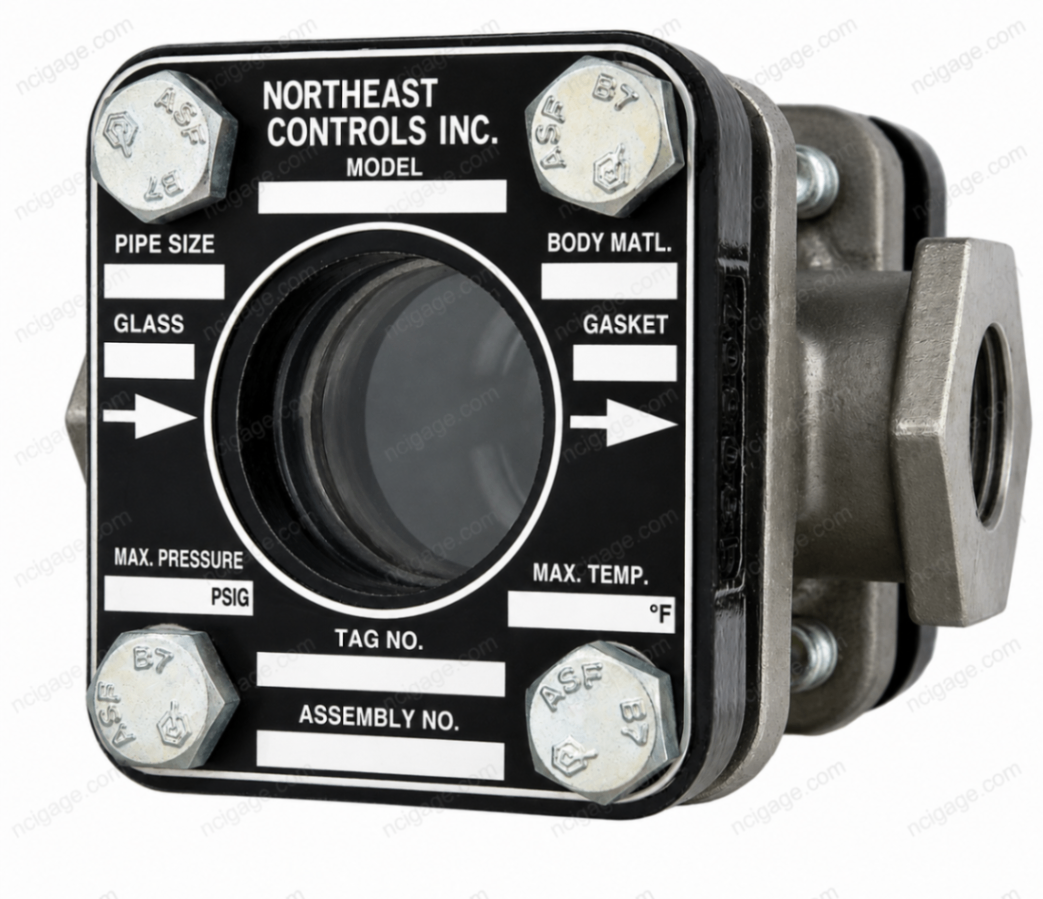

Model AKF-S Bulls-Eye Sight Flow Indicator
Threaded Bulls-Eye SFI — FNPT 150# Rating
The Model AKF-S Bulls-Eye Sight Flow Indicator is a threaded flow indicator with a cast body. This sight flow indicator provides visual observation and monitoring of the process flow stream. Available devices to enhance visibility include drip tube, flapper, and rotator.
Bodies are available in Bronze, Iron, Steel, and Stainless Steel. Special alloys are also available. Standard units are available with 150# rating. For 300# rating, see the Model AKF-SM.
Specifications
- Connection:
- FNPT (Female NPT) Threaded
- ANSI Rating:
- 150#
- Body Materials:
- Bronze, Iron, Steel, Stainless Steel (special alloys available)
- Standard Glass:
- Borosilicate
- Glass Options:
- Fused glass available for demanding applications
- Visibility Options:
- Drip Tube, Flapper, Rotator
- Dual Window:
- Available
Request a Quote
Get pricing and availability for Model AKF-S Bulls-Eye Sight Flow Indicator.
